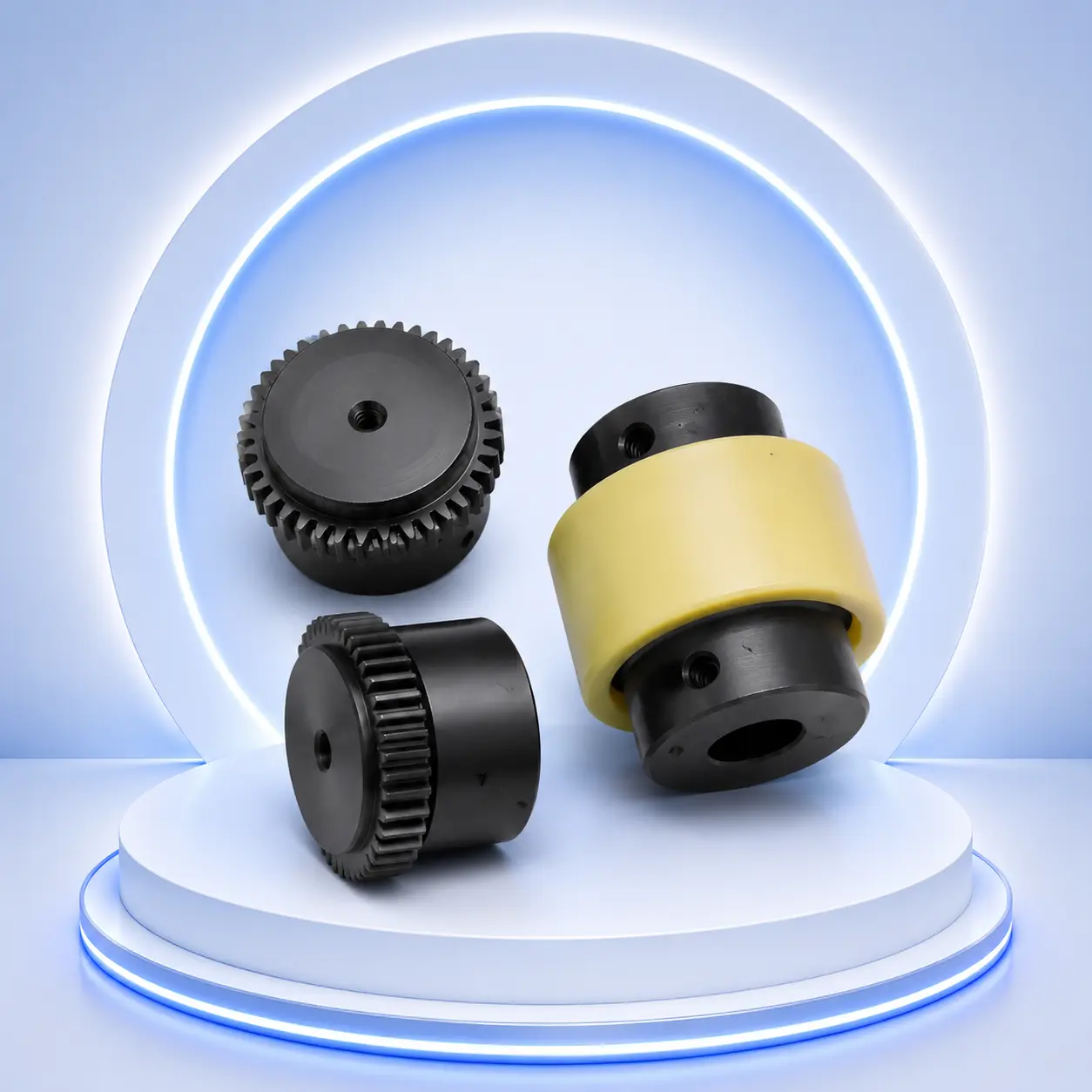

Unique nylon gear couplings
Industrial Grade · Nylon (Polyamide)
Unique Nylon Gear Couplings
Product Details:
| Head Code | Standard |
| Torque | Up to 250 Nm |
| Connection | Gear Type |
| Bore | Precision Machined |
| Sealing | No |
| Max. Speed | Up to 4000 rpm |
| Material | Nylon (Polyamide) |
Unique Nylon Gear Couplings Product Specifications
| Torque | Up to 250 Nm |
| Outer Diameter | Customizable (generally 40 mm to 150 mm) |
| Technique | Injection Moulded |
| Application | Power Transmission, Machinery Connections, Motor and Pump Coupling |
| Structure | Flexible Gear Coupling |
| Material | Nylon (Polyamide) |
| Surface Treatment | Polished |
| Connection | Gear Type |
| Inner Diameter | Customizable (generally 10 mm to 100 mm) |
| Head Code | Standard |
| Shape | Round |
| Standard | DIN / IS / Custom |
| Sealing | No |
| Max. Speed | Up to 4000 rpm |
| Bore | Precision Machined |
Unique Nylon Gear Couplings Trade Information
| Supply Ability | 1000 Unit Per Week |
| Sample Available | Yes |
| Packaging Details | Carton Boxes |
| Certifications | ISO 9001:2008 |
| Delivery Time | 10 Days |
| Sample Policy | Contact us for information regarding our sample policy |
| Main Domestic Market | All India |
Product Description
With due perfection, we are highly engrossed in manufacturing, exporting and supplying Unique Nylon Gear Couplings that are known for their excellent surface finish. Our experts team manufacture these couplings by making utilization of supreme quality raw materials and the latest techniques at our well-equipped manufacturing setup. Quality tested on different parameters, these couplings are available in various sizes and finishes. Besides, we provide these Unique Nylon Gear Couplings at most economic rates to the clients.
- Fine Finish
- Compact Design
- Easy to Install
- Robust Construction
Dimensions and Technical Data
| Size | Rated Torque Nm | MaxBore mm | Pilor Bore mm | KW 100 RPM mm | Max RPM | A mm | B mm | C mm | D mm | E mm | F mm | S mm | Weight Pilot Bore Kg | Inertia MR-2 KgM'2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M-19 | 16.6 | 19 | 10 | 0.17 | 11800 | 48 | 58 | 10.5 | 27 | 32 | 37 | 4 | 0.24 | 0.000042 |
| M-28 | 47 | 28 | 15 | 0.49 | 8500 | 66 | 84 | 19 | 40 | 44 | 46 | 4 | 0.86 | 0.00028 |
| M-38 | 84 | 38 | 15 | 0.88 | 6700 | 83 | 84 | 18 | 40 | 58 | 48 | 4 | 1.40 | 0.00078 |
| M-48 | 209 | 48 | 15 | 2.19 | 6000 | 100 | 110 | 28.5 | 53 | 65 | 53 | 4 | 2.38 | 0.00165 |
| M-65 | 380 | 65 | 25 | 4.00 | 4000 | 144 | 144 | 36 | 70 | 96 | 72 | 4 | 9.3 | 0.009 |
Product Brochure
Full technical datasheet · Size M-19 to M-65 · PDF · 04_Unique-Nylon-Gear-coupling.pdf
Reliable Performance for Diverse Applications
Engineered for robust power transmission, Unique Nylon Gear Couplings support a range of applications, from motor and pump coupling to machinery connections in industrial environments. Their versatility and flexible design ensure consistent performance even under demanding operational conditions.
High-Quality Material and Construction
Manufactured using high-grade nylon (polyamide), these gear couplings offer excellent wear resistance, smooth operation, and a polished surface finish. The injection moulding technique ensures dimensional accuracy and strength, making them suitable for heavy-duty usage.
Customization to Fit Every Need
The couplings are available in customizable bore and outer diameter ranges, accommodating specific requirements as per DIN, IS, or custom standards. This flexibility enables precise integration into existing or new machinery setups, ensuring optimal alignment and performance.
